$189.52

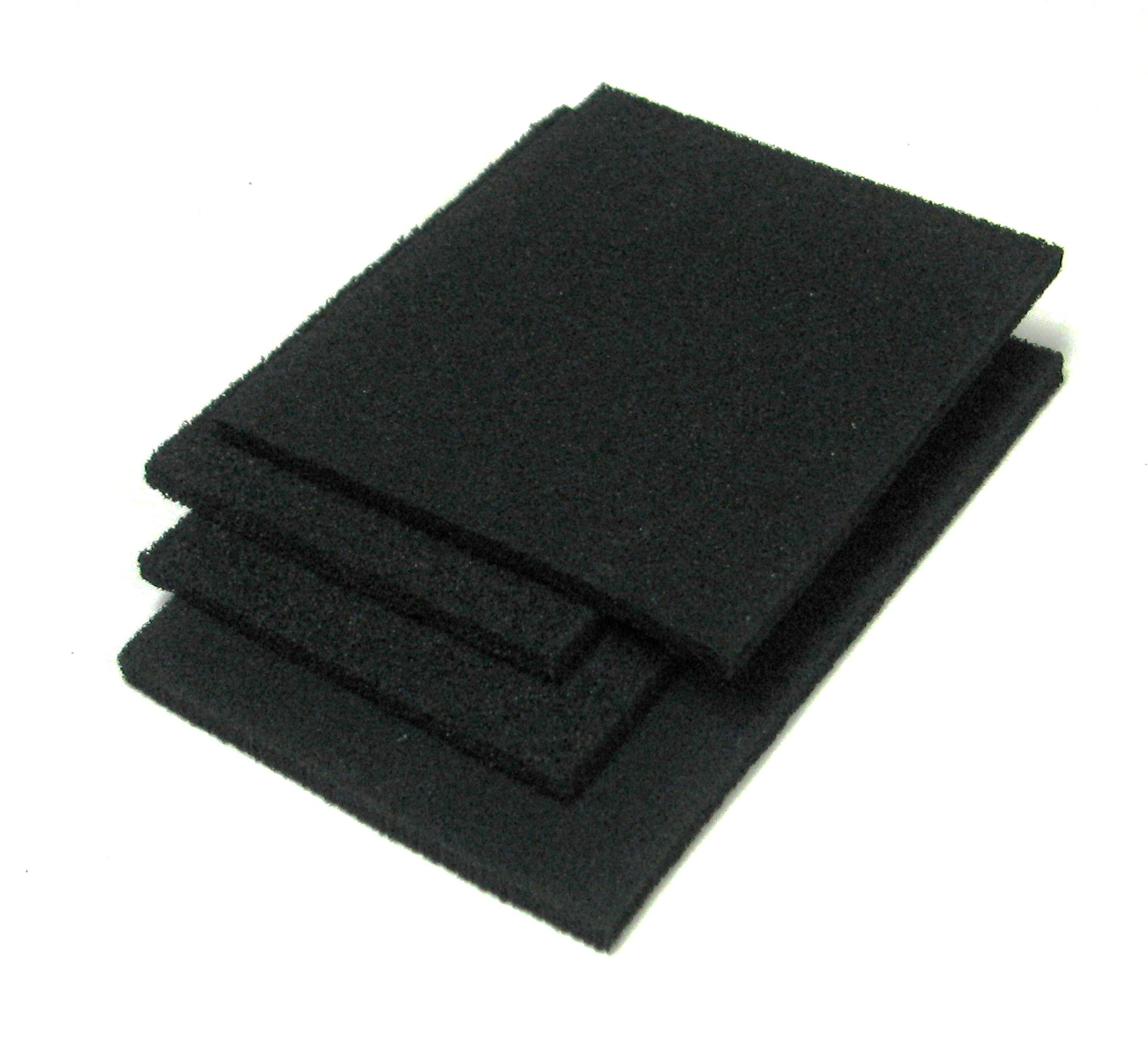

MAST Technologies’ Lossy Foam Absorber product series is a lightweight conductive carbon loaded sheet stock providing broadband insertion loss at microwave frequencies. Lossy Foam Absorbers are designed with a constant coating to exhibit high reflection loss and are intended to be applied to metal surfaces inside microwave cavities, housings, radomes, network enclosures, or antennae. Lossy Foam absorbers are the lowest cost solution for attenuating energy at frequencies from 1 GHz to 18 GHz.
Sheet Size: 24″ x 24″
This product with adhesive backing: MF22-0001-01
Standard Lead-Time: Ships within 3 business days
Electrical Performance:

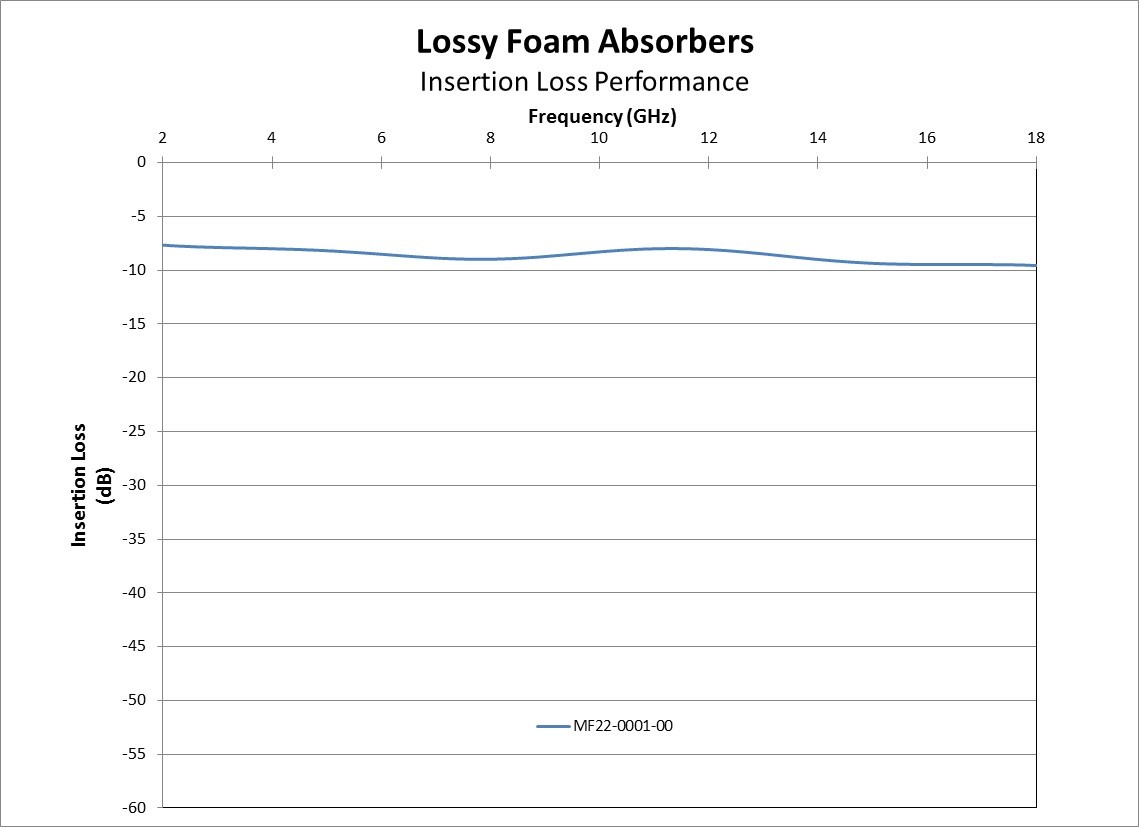

The performance plot below shows the typical insertion loss performance of this material. For more information on the test set-up, please refer to Tech Bulletin 103.
Typical Properties:
Thickness: 0.125″ (3.2mm)
Adhesive Thickness: 0.005″ (0.12mm)
Color: Black
Operating Temperature: -60°F to 250°F
Sheet Sizes: 24″ x 24″
Downloads
Technical Data Sheet
Material Safety Data Sheet (MSDS)
| Weight | 1 lbs |
|---|---|
| Dimensions | 24 × 24 × 0.125 in |
| Adhesive | No |
| Frequency | 01 to 18 GHz |
| Thickness | 0.125" (3.18mm) |
| Product Type | Lossy Foam |
| Product Size | 24"x24" (610x610mm) |
| Frequency Range | 1 to 18 GHz |
| Thickness Range | 0.081" – 0.200" |
